Model |

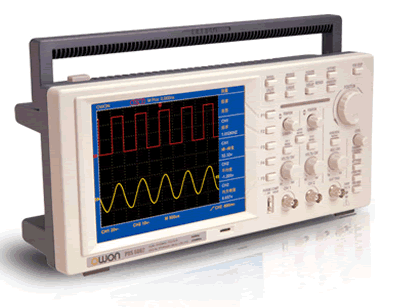

PDS5022S |
|
Bandwidth |
25MHz |
|
Sample Rate ( Real time ) |
100MS/s |
|
Rise time |
≤14ns |
|
Display |
7.8 inch colored LCD, 256 colors for STN screen /65536
colors for TFT screen, 640 x 480 pixels |
|
Channel |
Dual channels＋ external trigger |
|
Sampling mode |
Normal sample﹑Peak detect and Average |
|
Record length |
Max.6000 for each channel |
|
Sampling range |
10S/s～100MS/s |
|
Horizontal scale (s/div) |
5ns/div～100s/div |
|
Vertical sensitivity |
5mV ~5V/div (at BNC input) |
|
DC Gain Accuracy |
±5% |
|
Max. input voltage |
300V(PK-PK)(DC + AC PK-PK) |
|
Input impedance |
1MΩ±2% in parallel with 20pF±5pF |
|
Input coupling |
AC, DC |
|
Trigger Mode |
Edge, Video |
|
Vertical resolution (A/D) |
8 bits (2CH simultaneously) |
|
Sampling rate / relay time accuracy |
±100ppm |
Interval(ΔT)accuracy
(DC～100MHz) |
Single：±(1 interval time+100ppm x reading+0.6ns)
Average>16：±(1 interval time +100ppm
x reading+0.4ns) |
|
Waveform storage |
4 waveforms |
|
Automatic measurement |
Peak-to-Peak, Average, Root mean square, Frequency, and
Cycle |
|
Waveform math |
＋, －, Invert |
Lissajou's
figure |
Bandwidth |
25MHz |
|
Phase difference |
±3 degrees |
|
Interface |
USB, RS232 |
|
Power supply |
100-240 VACRMS，50Hz，CAT II |
|
Dimension |
350mm(L)*157mm(H)*103mm(W) |
|
Weight |
1KG |
